ROHM – High Voltage Superjunction Mosfets
PrestoMOSTM JN series 600V
PrestoMOS JN series contributes to reduce mounting area and improve inverter efficiency with Low RON and fast trr features.
- Part number R60xxJNx
- FRD is implemented in body diode of MOSFET

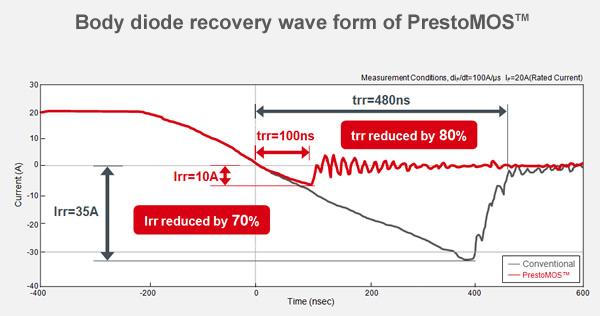

- Best-in-class fast & soft recovery body diode
- Suitable for inverter application
- Max. current up to 70A
- Packages: TO-220FN, TO-247, TO-3PF, D2PAK, DPAK
Super Junction-MOS EN series 600V / 650V
The R60xxENx, R65xxENx series featuring exceedingly low noises, is recommended for power supply circuits requiring noise countermeasures.
- Part number R60xxENx (600V) & R65xxENx (650V)
- Low switching noise and easy to use
- Usable for SMPS
- Max. current up to 76A
- Packages: TO-220FM, TO-247, TO-3PF, D2PAK, DPAK
Super Junction-MOS KN series 600V / 650V / 800V
Fast switching R60xxKNx, R65xxKNx, R80xxKNx series is recommended for power supply circuits demanding lower loss and greater efficiency.
- Part number R60xxKNx (600V), R65xxKNx (650V) & R80xxKNx (800V)
- Fast switching and low switching loss
- Usable for high efficiency SMPS
- Max. current up to 76A (600V, 650V) and 52A (800V)
- Packages: TO-220FM/AB, TO-247, TO-3PF, D2PAK, DPAK
