STMicroelectronics – SOD128Flat AEC-Q101-qualified power Schottky diodes
Housed in an SOD128Flat package – only 26 mg and 1 mm thick – ST’s qualified 60 and 100 V power Schottky rectifiers are suited for miniature LED lighting, battery-powered equipment, power converters, motor drives, reverse battery protection diodes in automotive applications and equipment installed in harsh industrial environments thanks to a TJ range from –40 to 175 °C. Almost 60% thinner than the standard 2.4 mm-high SMA package – while fully footprint compatible – designers can create lighter and slimmer modules, or easily use these as replacements in existing designs.
KEY FEATURES

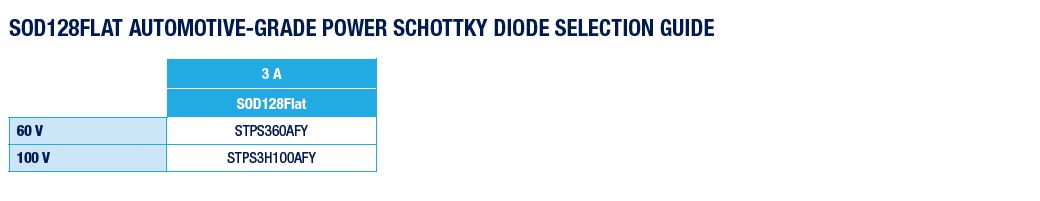

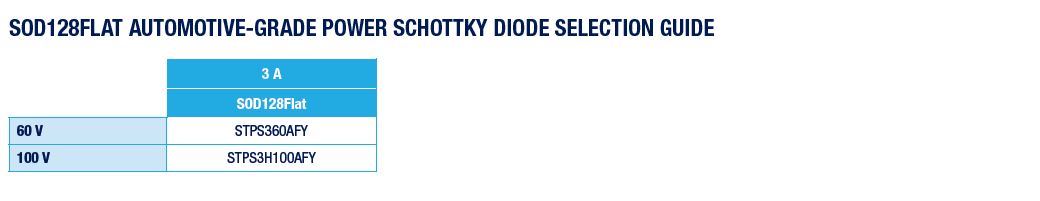

• 3 A, 60 V and 100 V power Schottky diodes
• SOD128Flat smart package, only 1-mm thick
• Footprint compatible with standard SMA package
• Automotive-grade qualified
• AEC-Q101 qualified and PPAP capable
• TJ range from – 40 to +175 °C
• ECOPACK®2 resin, RoHS-compliant packages
TARGETED APPLICATIONS
• LED lighting systems

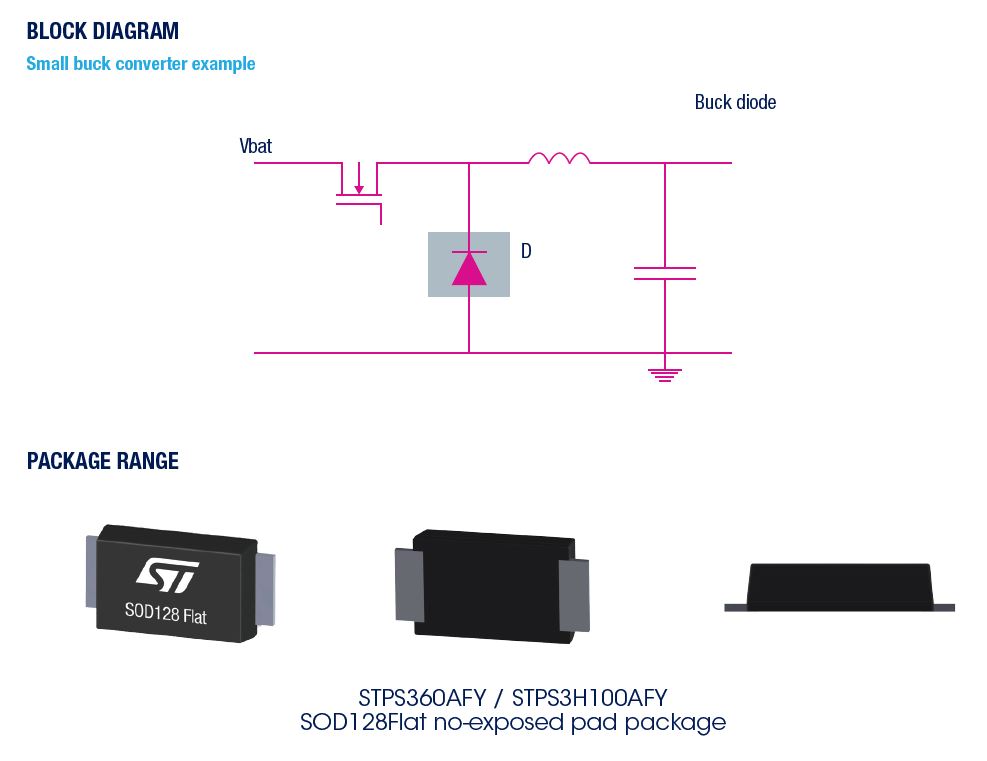

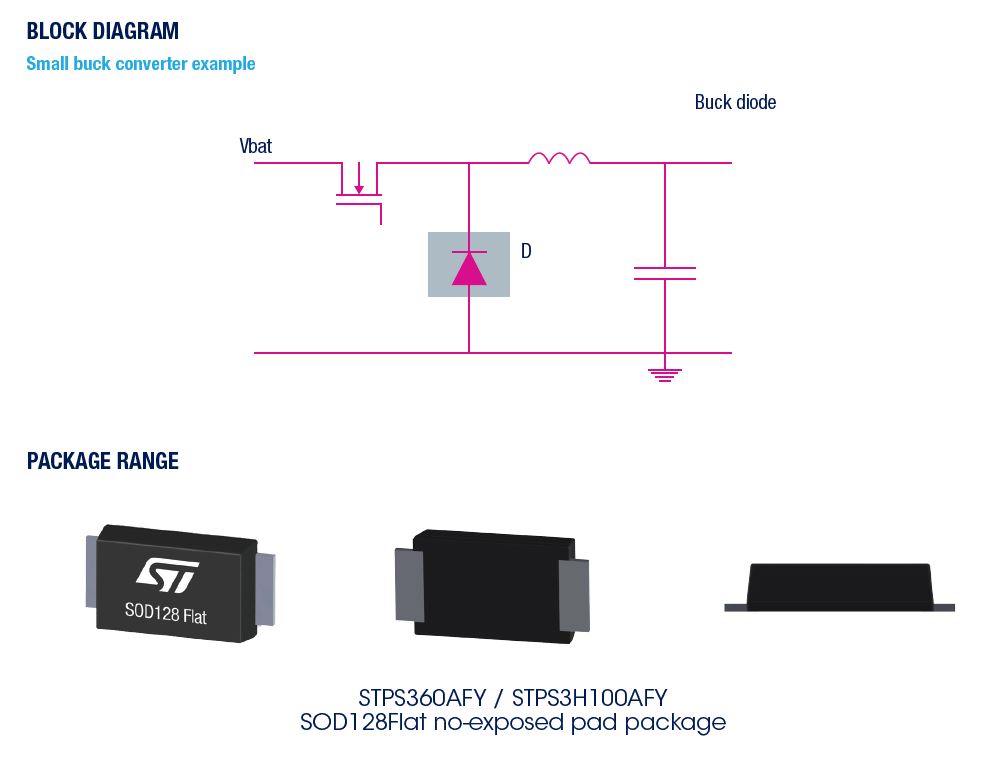

• Small DC/DC converters (flyback, buck, and buck-boost typologies)
• Reverse battery protection circuits
